A Customizable platform helps you to create your own RF module:
Removes all the RF hardware design, test investment, and risk from your project design.
Develop the embedded firmware based on industry-standard PHY/MAC layers.
Radiocrafts supports you with a fully tested module platform
We program your code onto the module, creating a module with a unique part-number
Module can only be purchased by customers that have a LOA (Letter of Authority) from you
Unique Customer Part Number
No costs on Hardware design and test
Fast to market with pre-certified modules – FCC and CE
How it works
The Customizable platforms from Radiocrafts are pre-qualified and pre-assessed RF platforms that contain all hardware for a complete RF module to meet your exact project requirements.
In the module customization process, Radiocrafts provides manufacturing, test and programming of your defined firmware, and delivers a fully functional RF module with a unique part-number.
Once you have developed the firmware code, you deliver this code to Radiocrafts to be implemented in the manufacturing flow at Radiocrafts. The programming of the modules will be done after the Hardware test before the modules are sent for delivery to you or your ordering customer.
Radiocrafts will not sell this part to any other customer unless they have a Letter of Authority (LOA) from you.
The customizable module platforms from Radiocrafts support the IEEE.802.15.4 and IEEE.802-15-4g wireless standards:
- IEEE.802.15.4 – a 2.4 GHz standard that is also used for proprietary solutions as well as industry standards such as ZigBee, 6LoWPAN, WirelessHART, and ISA100.11a.
- IEEE.802.15.4g – a 433 MHz and 868/915 MHz amendment to the IEEE802.15.4 standard that can be used for proprietary solutions as well as Wi-SUN applications.
We have 2 customizable RF module platforms that can be used to create your own custom module:
- The RC188xxxx RF module platforms support the IEEE 802.15.4g standard as well as Wireless M-Bus implementations, mostly for metering and industrial installations.
- Based on the CC13xx chip set from Texas Instruments.
- You create the firmware for your module using the SimpleLink CC13x0 SDK that can be downloaded on the TI website.
- The RC24xxxx RF module platforms support the IEEE 802.15.4 standard.
- Based on the CC2530 chip set from Texas Instruments
- You create the firmware for your module using the SimpleLink CC2530DK that can be downloaded on the TI website.
Customizable module benefits and features include:
- Complete RF Hardware solution
- Supports industry standard PHY/MAC – IEEE802.15.4 / IEEE802.15.4g
- Proven manufacturing and test procedure with millions of modules shipped
- Pre-certified and pre-assessed to meet regulatory requirements
- Unique part number for each design
- Development tools from Texas Instruments
- Fully protected customer IP
- Surface mount devices
- Standard form factor (12.7 x 25.4 x 3.3 mm)
- Built in antenna / antenna connector option on the RC2411 series
Radiocrafts has several RF module platforms to help you to create your own RF module. These modules will ensure the flexibility to choose different frequency bands, save you a lot of R&D investment, will take you fast to market, and are proven in quality with global installations.
RC18xx SOC module series
Module | Frequency Band (MHz) | Radio Channels # | Data Rate (kbps) | Rx Sensitivity (mA) | Rx Current (mA) | Power Output (dBm) | Tx Current (mA) | Sleep Current (uA) | Indicative LoS (M) | Region / Compliance |
RC1880 | 862 - 930 | unlimited | 0.6 - 4,000 | -124 | 6.2 | 14 | 26.5 | 0.2 | 5,000 | Worldwide* |
RC1880CEF | 862 - 930 | unlimited | 0.6 - 4,000 | -124 | 6.6 | 14 | 26.5 | 1.2 | 5,000 | Worldwide* |
Supports the IEEE 802.15.4g standard as well as Wireless M-Bus implementations, mostly for metering and industrial installations
RC24xxxx IEEE802.15.4 module series
Supports the IEEE802.15.4 standard that is also used for proprietary solutions as well as industry standards such as ZigBee, 6LoWPAN, and WirelessHART
Module | Frequency Band (MHz) | Radio Channels # | Data Rate (kbps) | Rx Sensitivity (mA) | Rx Current (mA) | Power Output (dBm) | Tx Current (mA) | Sleep Current (uA) | Indicative LoS (M) | Region / Compliance |
RC2400 | 2400 - 2483 | 16 | 250 | -97 | 24 | 3 | 34 | 0.4 | 500 | Worldwide* |
RC2400HP | 2400 - 2483 | 16 | 250 | -99 | 27 | 20 | 175 | 1.3 | 2,500 | Worldwide* |
RC2411AT | 2400 - 2483 | 16 | 250 | -97 | 24 | 3 | 34 | 0.4 | 500 | Worldwide* |
RC2411CT | 2400 - 2483 | 16 | 250 | -97 | 24 | 3 | 34 | 0.4 | 500 | Worldwide* |
RC2411HP-AT | 2400 - 2483 | 16 | 250 | -99 | 27 | 20 | 175 | 10 | 2,500 | Worldwide* |
RC2411HP-CT | 2400 - 2483 | 16 | 250 | -99 | 27 | 20 | 175 | 10 | 2,500 | Worldwide* |
Datasheets
File type: |
File name: |
File description: |
|---|---|---|
 |
This document describes the specifications of RC1880 / RC1880(CEF) radio module platforms that are compact surface-mounted ultra-low power RF modules based on the CC1310 system-on-chip from Texas Instruments. |
|
|
The IEEE 802.15.4 Transceiver Modules from Radiocrafts are a complete HW solution for volume manufacturing including a customer specific Network and Application layer protocol. The document describes the detailed information for the RC2400 and RC2400HP modules, such as features, reference data, pin description and other characteristics. |
|
|
The IEEE 802.15.4 Transceiver Modules from Radiocrafts are a complete HW solution for volume manufacturing including a customer specific Network and Application layer protocol. The document describes the detailed information for the RC241X and RC241XHP modules, such as features, reference data, pin description and other characteristics. Products: RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
User Manuals
File type: |
File name: |
File description: |
|---|---|---|
|
This document, with references, includes all required information to develop a customer specific firmware solution on the RC1880 and RC1880(CEF) hardware platforms. |
|
|
This document, with references, includes all required information to develop a customer specific firmware solution on the RC24xx/RC24xxHP hardware platforms. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Application Notes
File type: |
File name: |
File description: |
|---|---|---|
|
When designing the PCB layout for the RF modules, there are some measures that need to be taken to get the best performance from the radio module. In this application note, we will suggest some best practices for your product to succeed. |
|
|
There are many different wireless standards and technologies available to enable the internet of things (IoT). The different technologies have different pro’s and con’s depending on the use case and the end customer. Trying to keep up with the latest wireless trends can drain a company of all its resources and take attention from its core business. The solution recommended by Radiocrafts is to use a modular approach and a common RF module footprint that enables all the technologies offered by Radiocrafts without modifications to the PCB. |
|
|
When selecting the right radio technology, the achievable communication range is an important factor. This document review how to analyse radio range based on parameter provided in the data sheets for the different module families. Some measurement results from practical range testing are also shown |
|
|
The purpose of this document is to list some of the most common issues that customers report when using Radiocrafts modules, and the solution to these issues. |
|
|
Radiocrafts offers a wide range of wireless modules targeting different solutions word-wide. This Application Note informs how to select and use Radiocrafts modules for FCC compliance in US. |
|
|
“The Radiocrafts Demo Boards and USB-sticks include an on-board firmware upgrade connector compatible with different flash programming adapters. It is also recommended that PCB layouts include a connector for firmware upgrade. This Application Note describes how to upgrade the firmware of any Radiocrafts RFmodule using either a CC Debugger or the FlashPro-CC tools.” |
|
|
The RC1xx0 and RC2x00 series of RF Modules with integrated protocol offers easy adaptation of wireless communication utilizing a simple UART serial interface. In their standard versions without any required configuration the modules offer two pins for controlling PA, LNA and SPDTs for signal switching. Two SPDTs are required since it is only one RF pin on the Radiocrafts modules. |
White Papers
File type: |
File name: |
File description: |
|---|---|---|
|
In this whitepaper we outline some parts of the required process needed for a product to be accepted in the market with a Radiocrafts module inside. The paper does not cover every license type in every country but instead gives an overview of the certifications needed and how to test against this. |
|
|
The new RED (Radio Equipment Directive, 2014/53/EU) is replacing the R&TTE Directive (1999/5/EC), and comes into full force from 2017-06-13. This document describes the main changes in the new directive, information about assessment and Declaration of Conformity, end user responsibilities, etc. |
|
|
This document covers the relevant information about the different antenna types, their selection criteria and matching, positioning, and selection guide based on different frequencies. |
For all our Customizable modules, easy-to-use Development Kits are available for rapid prototyping and proof of concept. The kits contain:
- Two Development Boards with your module of choice
- Onboard USB level shifter
- USB connector
- SMA antenna connector
- I/O break-out
- Quarterwave stub antennas with SMA connector
- USB cables
- Additionally, the HP variants include AC/DC Power Supplies
One Development Kit will make a wireless link “out of the box” and feature easy access to all the modules I/O pins. The kit can be used together with the PC software tools.
Development Kit Software Tools
File type: |
File name: |
File description: |
|---|---|---|
 |
Radiocrafts has compiled the TI-15.4-STACK Co-Processor. with the pin mapping done to fit the RC1880xxx demo board. Adding this firmware to the RC1880 and RC1880CEF creates a fully functional IEEE 802.15.4 (g/e) RF module. |
|
|
RC Tools ZNM contains the PC tools for design with the ZNM and RC24xxxx Customizable module series. It includes the CCT tool. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Development Kit Quick Start
File type: |
File name: |
File description: |
|---|---|---|
|
This Quick Start includes the general overview of the Demonstration Kit for RC1880 and RC1880CEF Customizable modules. |
|
|
The RC24xx and RC24xxHP Demonstration Kit from Radiocrafts is designed to make it easy for the user to evaluate the module platform, develop an application, and build prototypes. Bundled with the Demonstration Kit is the RCTools PC software to be used together with the Demo Boards. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Development Kit User Manual
File type: |
File name: |
File description: |
|---|---|---|
|
This User Manual describes how to use the Demonstration Kit for RC1880 and RC1880CEF Customizable modules and provides detailed documentation for the Demonstration Board. |
|
|
This Development Kit User Manual includes a step by step guide on how to properly setup the Development Kit for RC24xx and RC24xxHP module series. The document includes a detailed introduction of the Development Kit, a block diagram, the prototyping process, the antenna selection and troubleshooting. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
|
|
RCTools is a powerful and easy to use PC suite that helps you during test, development and deployment of the Radiocrafts modules. The RCTools includes RC_CCT, RC_SA and RC_DT stand-alone applications running under windows .Net Framework. The RCTools is free of charge and easily installed (including .NET and USB Driver) by running the setup file. |
|
|
This document describes how to properly use ZNM Configuration and Communication Tool for ZNM Zigbee Network Modules. This tool also applies to our customizable products. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Development Kit Reference Design
File type: |
File name: |
File description: |
|---|---|---|
 |
Schematic and PCB documentation used for the development board. This board is recommended to use as a reference design. Products: RC1880 and RC1880CEF |
|
|
Schematic and PCB documentation used for our development kits. This board is recommended to use as a reference design. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Radiocrafts offers software tools to support in the evaluation and development of new applications.
Co-processor, an easy way to use 802.15.4 (g/e) on the RC1880 and RC1880(CEF) module platforms
Radiocrafts provides software solutions you can use to more easily customise your module.
We have compiled the TI-15.4-STACK Co-Processor with the pin mapping done to fit our RC1880 and RC1880CEF demo boards. This firmware can be downloaded free of charge from the Radiocrafts website. Adding this to the RC1880(CEF) creates a fully functional IEEE 802.15.4 (g/e) RF module.
The TI-15.4-STACK Co-Processor provides an interface for configuration of network operations (for example, starting a network, scan for the network, join the network) with or without security, and frequency hopping. In addition, it gives an interface for sending and receiving data.
The combined solution, that we refer to as RC18xx-COP, is a complete RF module supporting the IEE802.15.4 wireless standard that supports star networking on sub-GHz frequencies.
The RC18xx-COP also makes it easy for the users to add IEEE 802.15.4 functionality to an existing product as well while also providing great flexibility in the choice of microcontrollers.
Read the RC18xx Firmware Development User Manual for more details.
File type: |
File name: |
File description: |
|---|---|---|
|
Radiocrafts has compiled the TI-15.4-STACK Co-Processor. with the pin mapping done to fit the RC1880xxx demo board. Adding this firmware to the RC1880 and RC1880CEF creates a fully functional IEEE 802.15.4 (g/e) RF module. |
|
|
RC Tools ZNM contains the PC tools for design with the ZNM and RC24xxxx Customizable module series. It includes the CCT tool. Products: RC2400, RC2400HP, RC2411AT, RC2411CT, RC2411HP-AT, RC2411HP-CT |
Explore Radiocrafts’ vast array of webinars, videos, blogs, and wireless guides to learn more about how you can benefit from using Radiocrafts’ Customizable modules to fit your exact project requirements!
Webinars
File type: |
File name: |
File description: |
|---|---|---|
 |
In this webinar we will discuss:
• Approvals with large reach: FCC and CE |

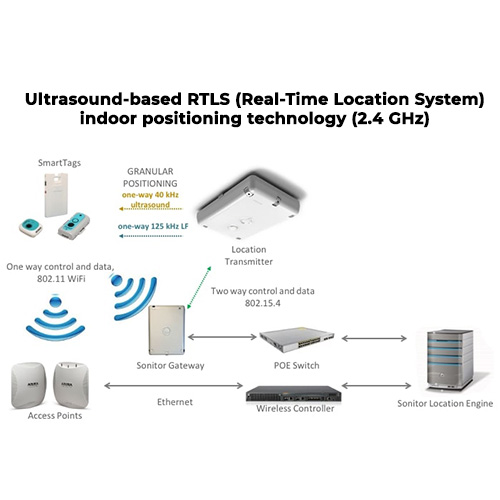

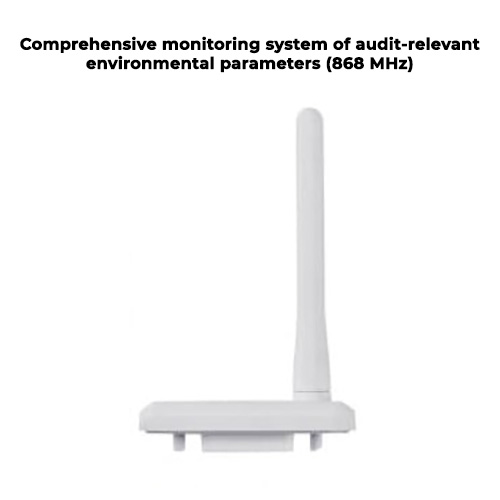

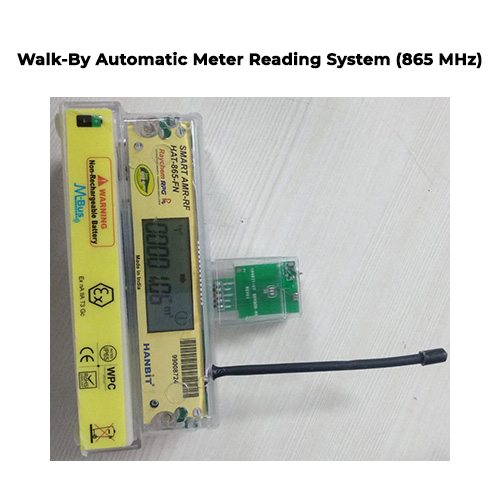

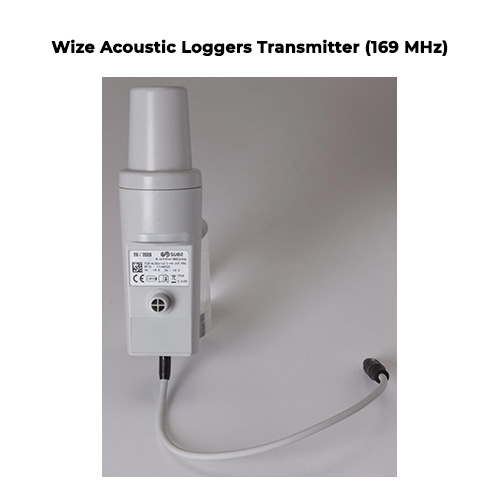

Radiocrafts’ Customizable modules have helped our customers get fast to market in a wide variety of wireless applications!
How To Buy Customizable Modules
For any module inquiries please contact a Radiocrafts Distribution Partner near you!
Or Buy Online From DigiKey!
Product Name | Frequency | Region Compliance | Buy Module Online | Buy Development Kit Online |
RC1880 | 862 - 930 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC1880CEF | 862 - 930 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2400 | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2400HP | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2411AT | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2411CT | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2411HP-AT | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
RC2411HP-CT | 2400 - 2483 MHz | Worldwide* | Contact Radiocrafts | Contact Radiocrafts |
